Postby Skinnytorus » Saturday, 07.June 2014, 09:28

Here is a list of my suggestions on making standalone operators out of available shader code.
There are too many links and I have to attach the file. Feel free to add your ideas to the list.
You do not have the required permissions to view the files attached to this post.
Skinnytorus
Operator
Operator

Posts: 1300
Joined: Monday, 06.February 2012, 17:46

Re: Shader Effect Operators

Postby CybeREX » Saturday, 07.June 2014, 10:00

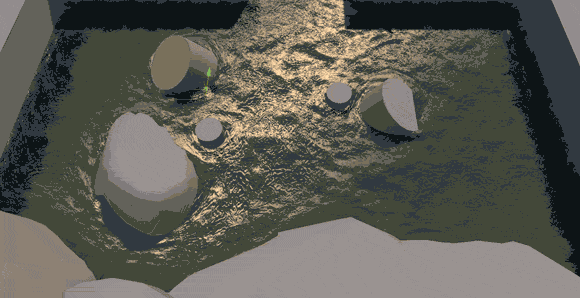

I very like to have water operator in wz4 like this one shader code =)
http://www.youtube.com/watch?v=2AVh1x-Uqjs
and here is the GLSL code for this
Code: Select all
#include "globalsShader.glhl"
#include "textureTile.glsl"

const float Z0 = 1.0;

uniform float radius;
uniform mat4 cameraToOcean;
uniform mat4 screenToCamera;
uniform mat4 cameraToScreen;
uniform mat3 oceanToCamera;
uniform mat4 oceanToWorld;
uniform vec3 oceanCameraPos;
uniform vec3 oceanSunDir;
uniform vec3 horizon1;
uniform vec3 horizon2;

uniform float nbWaves; // number of waves
uniform sampler1D wavesSampler; // waves parameters (h, omega, kx, ky) in wind space
uniform float heightOffset; // so that surface height is centered around z = 0
uniform float time; // current time

// grid cell size in pixels, angle under which a grid cell is seen,
// and parameters of the geometric series used for wavelengths
uniform vec4 lods;

#define NYQUIST_MIN 0.5 // wavelengths below NYQUIST_MIN * sampling period are fully attenuated
#define NYQUIST_MAX 1.25 // wavelengths above NYQUIST_MAX * sampling period are not attenuated at all

const float g = 9.81;
const float PI = 3.141592657;

#ifdef _VERTEX_

layout(location=0) in vec3 vertex;
out float oceanLod;
out vec2 oceanUv; // coordinates in wind space used to compute P(u)
out vec3 oceanP; // wave point P(u) in ocean space
out vec3 oceanDPdu; // dPdu in wind space, used to compute N
out vec3 oceanDPdv; // dPdv in wind space, used to compute N
out float oceanRoughness; // variance of unresolved waves in wind space

vec2 oceanPos(vec3 vertex, out float t, out vec3 cameraDir, out vec3 oceanDir) {
    float horizon = horizon1.x + horizon1.y * vertex.x - sqrt(horizon2.x + (horizon2.y + horizon2.z * vertex.x) * vertex.x);
    cameraDir = normalize((screenToCamera * vec4(vertex.x, min(vertex.y, horizon), 0.0, 1.0)).xyz);
    oceanDir = (cameraToOcean * vec4(cameraDir, 0.0)).xyz;
    float cz = oceanCameraPos.z;
    float dz = oceanDir.z;
    if (radius == 0.0) {
        t = (heightOffset + Z0 - cz) / dz;
    } else {
        float b = dz * (cz + radius);
        float c = cz * (cz + 2.0 * radius);
        float tSphere = - b - sqrt(max(b * b - c, 0.0));
        float tApprox = - cz / dz * (1.0 + cz / (2.0 * radius) * (1.0 - dz * dz));
        t = abs((tApprox - tSphere) * dz) < 1.0 ? tApprox : tSphere;
    }
    return oceanCameraPos.xy + t * oceanDir.xy;
}

vec2 oceanPos(vec3 vertex) {
    float t;
    vec3 cameraDir;
    vec3 oceanDir;
    return oceanPos(vertex, t, cameraDir, oceanDir);
}

void main() {
    float t;
    vec3 cameraDir;
    vec3 oceanDir;
    vec2 uv = oceanPos(vertex, t, cameraDir, oceanDir);
    float lod = - t / oceanDir.z * lods.y; // size in meters of one grid cell, projected on the sea surface
    vec2 duv = oceanPos(vertex + vec3(0.0, 0.01, 0.0)) - uv;
    vec3 dP = vec3(0.0, 0.0, heightOffset + (radius > 0.0 ? 0.0 : Z0));
    vec3 dPdu = vec3(1.0, 0.0, 0.0);
    vec3 dPdv = vec3(0.0, 1.0, 0.0);
    float roughness = getSeaRoughness();

    if (duv.x != 0.0 || duv.y != 0.0) {
        float iMin = max(floor((log2(NYQUIST_MIN * lod) - lods.z) * lods.w), 0.0);
        for (float i = iMin; i < nbWaves; ++i) {
            vec4 wt = textureLod(wavesSampler, (i + 0.5) / nbWaves, 0.0);
            float phase = wt.y * time - dot(wt.zw, uv);
            float s = sin(phase);
            float c = cos(phase);
            float overk = g / (wt.y * wt.y);

            float wm = smoothstep(NYQUIST_MIN, NYQUIST_MAX, (2.0 * PI) * overk / lod);
            vec3 factor = wm * wt.x * vec3(wt.zw * overk, 1.0);

            dP += factor * vec3(s, s, c);

            vec3 dPd = factor * vec3(c, c, -s);
            dPdu -= dPd * wt.z;
            dPdv -= dPd * wt.w;

            wt.zw *= overk;
            float kh = wt.x / overk;
            roughness -= wt.z * wt.z * (1.0 - sqrt(1.0 - kh * kh));
        }
    }
    vec3 p = t * oceanDir + dP + vec3(0.0, 0.0, oceanCameraPos.z);
    if (radius > 0.0) {
        dPdu += vec3(0.0, 0.0, -p.x / (radius + p.z));
        dPdv += vec3(0.0, 0.0, -p.y / (radius + p.z));
    }
    gl_Position = cameraToScreen * vec4(t * cameraDir + oceanToCamera * dP, 1.0);
    oceanLod = lod;
    oceanUv = uv;
    oceanP = p;
    oceanDPdu = dPdu;
    oceanDPdv = dPdv;
    oceanRoughness = roughness;
}

#endif

#ifdef _FRAGMENT_

#include "atmosphereShader.glhl"
#include "oceanBrdf.glhl"
#include "clouds.glhl"

in float oceanLod;
in vec2 oceanUv;
in vec3 oceanP;
in vec3 oceanDPdu;
in vec3 oceanDPdv;
in float oceanRoughness;
layout(location=0) out vec4 data;

void main() {
    vec3 WSD = getWorldSunDir();
    vec3 WCP = getWorldCameraPos();
    float lod = oceanLod;
    vec2 uv = oceanUv;
    vec3 dPdu = oceanDPdu;
    vec3 dPdv = oceanDPdv;
    float roughness = oceanRoughness;

    float iMAX = min(ceil((log2(NYQUIST_MAX * lod) - lods.z) * lods.w), nbWaves - 1.0);
    float iMax = floor((log2(NYQUIST_MIN * lod) - lods.z) * lods.w);
    float iMin = max(0.0, floor((log2(NYQUIST_MIN * lod / lods.x) - lods.z) * lods.w));
    for (float i = iMin; i <= iMAX; i += 1.0) {
        vec4 wt = textureLod(wavesSampler, (i + 0.5) / nbWaves, 0.0);
        float phase = wt.y * time - dot(wt.zw, uv);
        float s = sin(phase);
        float c = cos(phase);
        float overk = g / (wt.y * wt.y);

        float wm = smoothstep(NYQUIST_MIN, NYQUIST_MAX, (2.0 * PI) * overk / lod);
        float wn = smoothstep(NYQUIST_MIN, NYQUIST_MAX, (2.0 * PI) * overk / lod * lods.x);
        vec3 factor = (1.0 - wm) * wn * wt.x * vec3(wt.zw * overk, 1.0);

        vec3 dPd = factor * vec3(c, c, -s);
        dPdu -= dPd * wt.z;
        dPdv -= dPd * wt.w;

        wt.zw *= overk;
        float kh = i < iMax ? wt.x / overk : 0.0;
        float wkh = (1.0 - wn) * kh;
        roughness -= wt.z * wt.z * (sqrt(1.0 - wkh * wkh) - sqrt(1.0 - kh * kh));
    }

    roughness = max(roughness, 1e-5);

    vec3 earthCamera = vec3(0.0, 0.0, oceanCameraPos.z + radius);
    vec3 earthP = radius > 0.0 ? normalize(oceanP + vec3(0.0, 0.0, radius)) * (radius + 10.0) : oceanP;

    vec3 oceanCamera = vec3(0.0, 0.0, oceanCameraPos.z);
    vec3 V = normalize(oceanCamera - oceanP);
    vec3 N = normalize(cross(dPdu, dPdv));
    if (dot(V, N) < 0.0) {
        N = reflect(N, V); // reflects backfacing normals
    }

    vec3 sunL;
    vec3 skyE;
    vec3 extinction;
    sunRadianceAndSkyIrradiance(earthP, N, oceanSunDir, sunL, skyE);

    vec3 worldP = (oceanToWorld * vec4(oceanP, 1.0)).xyz;
    sunL *= cloudsShadow(worldP, WSD, 0.0, dot(normalize(worldP), WSD), radius);

    vec3 surfaceColor = oceanRadiance(V, N, oceanSunDir, roughness, sunL, skyE);

    // aerial perspective
    vec3 inscatter = inScattering(earthCamera, earthP, oceanSunDir, extinction, 0.0);
    vec3 finalColor = surfaceColor * extinction + inscatter;

    data.rgb = hdr(finalColor);
    data.a = 1.0;
}
CybeREX
Demomaker
Demomaker

Posts: 153
Joined: Thursday, 03.April 2014, 07:44

Re: Shader Effect Operators

Postby Skinnytorus » Saturday, 07.June 2014, 10:46

Yeah... That's the one I forgot to add: the ocean. Would be just great to have it as an operator.
Skinnytorus
Operator
Operator

Posts: 1300
Joined: Monday, 06.February 2012, 17:46

Re: Shader Effect Operators

Postby ikam » Saturday, 07.June 2014, 11:40

yes, cool effects.

here in old collections of potential candidates.
You do not have the required permissions to view the files attached to this post.
ikam
Operator
Operator

Posts: 911
Joined: Friday, 14.October 2011, 13:00
Location: France

Re: Shader Effect Operators

Postby Skinnytorus » Saturday, 07.June 2014, 12:38

Many thanks for that. Here is another one that I forgot: the electric charge!
You do not have the required permissions to view the files attached to this post.
Skinnytorus
Operator
Operator

Posts: 1300
Joined: Monday, 06.February 2012, 17:46

Re: Shader Effect Operators

Postby Skinnytorus » Saturday, 07.June 2014, 16:04

Skinnytorus
Operator
Operator

Posts: 1300
Joined: Monday, 06.February 2012, 17:46

Re: Shader Effect Operators

Postby CybeREX » Wednesday, 11.June 2014, 13:02

CybeREX
Demomaker
Demomaker

Posts: 153
Joined: Thursday, 03.April 2014, 07:44

Re: Shader Effect Operators

Postby Skinnytorus » Wednesday, 11.June 2014, 18:48

Yeah... I doubt wz4 engine is that fast... However, God knows... :)
